A Delhi buyer needs more than a number: the quotation must identify GST, delivery, accessories, warranty, stock, and dispatch time. You will be able to compare the MT-7063’s actual test functions with your cable work and ask a supplier questions that expose unsupported PoE claims or missing parts.
Key takeaways
- Compare GST, invoice, accessories, and Delhi NCR delivery in every quote.
- Verify RJ45 wiring, cable pairs, PoE voltage, and polarity before connection.
- Do not treat wire-map or PoE detection as proof of network performance.
- Ask suppliers for model details, warranty terms, stock status, and tax documentation.
What the MT-7063 quotation should include
The MT 7063 price in a Delhi B2B quotation should be a landed, documented cost—not an instrument-only headline. Ask whether GST, invoice, Delhi NCR delivery, and every listed accessory are included before comparing offers.
| Offer type | Usually covers | Risk when comparing |
|---|---|---|
| Instrument-only | Main tester, basic function | Remote unit, battery, case, adapters, and warranty may cost extra |
| Complete field kit | Tester, remote unit, battery, case, leads or adapters, warranty | Confirm that each item is named, not merely implied |
Confirm these points in writing:
- GST inclusion, delivery charge within Delhi NCR, delivery location, and minimum order quantity
- Ex-stock or order-based status and promised dispatch time
- Main tester, remote unit, battery type, low-battery indication, auto-power-off, and readable display or LEDs
- Carrying case, test leads, adapters, invoice, warranty period, and replacement availability for the remote unit
- Replacement or return policy for a faulty tester, missing accessory, or dead battery
- Supplier tax registration details and the exact legal name on the invoice
A quotation that says “network cable tester” does not prove that adapters, RJ45/8P8C support, or a complete field kit are included. Request the final payable amount with GST and freight shown as separate line items; two listings can show different prices for the same package, or the same price for very different packages.
Which cables, connectors, and PoE signals must be verified
Confirm that the MT-7063 matches your inventory before comparing quotations. Ask the supplier to state whether it tests Cat5e, Cat6, and Cat6A cable in both shielded and unshielded versions, including straight-through patch leads, crossover cables, terminated cable, and unterminated cable.
| Connection or cable | What to confirm | Do not assume |
|---|---|---|
| RJ45/8P8C Ethernet | Wire-map and continuity support | Every modular plug is compatible |
| RJ11 or RJ12 | Dedicated support or supplied adapter | RJ45 capability covers telephone leads |
| Coaxial or USB | Separate testing function and connector | The tester can test them |
| Unterminated cable | Required termination or supported method | A loose cable can plug directly into it |
A lan cable tester for technicians needs a remote unit that can sit at the far end of an installed run while the main unit operates at the outlet or patch panel. Ask whether adapters are included or sold separately.
For an mt 7063 poe lan cable tester in delhi, request written evidence of the PoE function, not just a photograph of a PoE light. Confirm support for IEEE 802.3af, 802.3at, and 802.3bt, the voltage range, energized-pair identification, polarity, passive-PoE detection, and whether it detects active power without loading the network.
A light can show voltage presence while proving neither negotiation, power class, nor usable power under load.
How to run a wire-map and PoE check without damaging equipment
1. Disconnect the cable from switches, injectors, and other powered equipment. Place the main unit at the patch panel, wall outlet, or near-end plug, then connect the remote unit at the far end. A LAN cable tester for technicians is safest on an isolated, passive cable.
2. Run the wire-map test and read the remote sequence against the 8P8C T568A or T568B order. T568A is 1 white-green, 2 green, 3 white-orange, 4 blue, 5 white-blue, 6 orange, 7 white-brown, 8 brown. T568B swaps the orange and green pairs.
| Fault display | What it means | What to inspect |
|---|---|---|
| Open conductor | One pin does not reach the remote | Broken conductor, crimp, or contact |
| Short | Two conductors touch electrically | Damaged insulation or plug |
| Reversed pair | The pair’s two wires exchange positions | Incorrect termination |
| Crossed conductors | Wires land on different pin positions | Miswired plug or jack |
| Missing pin | A conductor has no detected termination | Empty, recessed, or failed contact |
| Split pair | Pin continuity exists, but pair grouping is wrong | Termination using unlike twisted pairs |
Eight continuous conductors can still form a split pair. That preserves one-to-one continuity but destroys the pair geometry required by 1000BASE-T, causing errors or a failed link. Use a tester that explicitly detects split pairs.
3. If the result changes while flexing the plug, latch, or strain relief, hold the cable still, repeat the test, then replace or reterminate the suspect end.
Do not attach a basic continuity tester to an unknown powered PoE port unless its documentation permits live PoE testing. Passive wire mapping is separate from safe identification of energized pairs; use a PoE-rated function that states its voltage range, pair detection, and non-loading method.
What the tester measures—and what it cannot certify
Use the MT-7063 for field troubleshooting, not formal Ethernet certification. A basic unit can reveal continuity and wire order, but that does not prove insertion loss, return loss, crosstalk, or Cat5e/Cat6 permanent-link compliance.
Before buying an mt 7063 poe lan cable tester in delhi, ask the supplier to confirm exactly what the supplied unit reports:
1. Does it show only continuity and pin sequence, or also cable length, PoE voltage, power class, link speed, polarity, and distance to fault?
2. If it displays length, treat the result as a TDR estimate. Accuracy depends on velocity of propagation, cable construction, connector quality, and calibration, so the reading is not proof of a compliant installed-link length.
3. Does the PoE function identify energized pairs and detect IEEE 802.3af, 802.3at, or 802.3bt negotiation? Voltage presence alone does not prove power class or available power under load.
4. Can it test a live link safely? Do not assume that a link test is non-disruptive; an ordinary wire-map function is not automatically protected against PoE voltage.
A Fluke DSX-class instrument measures against defined limits and produces certification results. Treat the MT-7063 as a diagnostic tool unless its manufacturer provides those measurements and limits.
How to compare a Delhi supplier before placing the order
Ask a poe lan cable tester supplier in delhi for a written, dated quotation rather than relying on a listing. The “MT 7063 price” is comparable only when the offer identifies the exact configuration and states:
- Current stock status, dispatch time, and Delhi NCR delivery coverage
- GST treatment, tax invoice terms, and freight charges
- Tester, remote unit, battery, case, leads, adapters, and warranty included
- Battery type, low-battery warning, auto-power-off, and display or LED readability
- Remote-unit replacement policy and adapter availability
Miracle Tools And Tackle LLP can provide the exact unit configuration, live stock confirmation, quotation, invoice terms, and delivery conditions; verify the manual and included accessories independently.
Compare offers on the same practical basis:
| Offer detail | Acceptable evidence | Risk if missing |
|---|---|---|
| Stock | “In stock” with dispatch date | Payment for an order-based unit |
| GST and freight | Separate figures or “included” stated | Unexpected landed cost |
| Warranty and remote | Period, coverage, replacement route | Downtime after a failed remote |
Before accepting the MT-7063, request a demonstration using a known-good patch lead, a cable with one conductor open, and a real PoE switch or injector. The tester should identify the known fault and show a meaningful PoE result, not merely continuity. This exposes weak remote contacts and a continuity-only PoE claim.
Ask whether the demonstration detects active power without loading the network, and whether it supports IEEE 802.3af, 802.3at, or 802.3bt; a PoE light alone proves none of those capabilities.
Related product

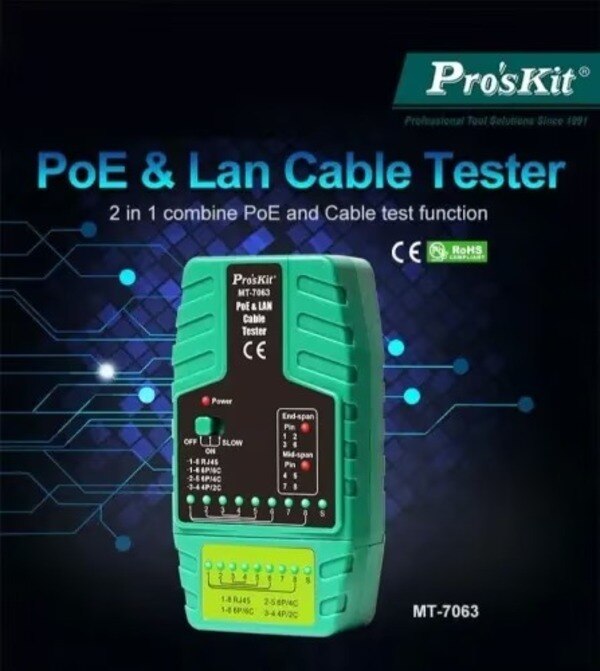

 | Measuring Instruments MT-7063 POE & LAN Cable Tester ₹2528 The Proskit MT-7063 PoE & LAN Cable Tester is a versatile and essential tool designed for testing Ethernet cables (LAN) as well as Power over... View product → |
Frequently asked questions
What should an MT-7063 quotation include?
Request the instrument price, GST, tax invoice, delivery charge to your location, included accessories, warranty terms, and stock status. Compare landed totals rather than an instrument-only headline.
Which cables and PoE signals should the MT-7063 verify?
Check the tester’s stated compatibility with RJ45 Ethernet cables, conductor wire-map faults, open pairs, shorted pairs, crossed pairs, and PoE voltage or polarity detection. Confirm the supported PoE standards and voltage range in the datasheet before ordering.
How do you run a wire-map and PoE check safely?
Disconnect the cable from switches, injectors, routers, and powered devices before performing a wire-map test. Use the remote unit at the far end, then connect PoE only through the tester’s documented PoE test mode and follow its input limits.
What can an MT-7063 measure, and what can it not certify?
It can identify supported wiring faults and detect or measure the PoE signals listed in its specification. It does not automatically certify cable category, bandwidth, insertion loss, permanent-link compliance, or switch performance unless those tests are explicitly specified.
How should you compare a Delhi PoE LAN cable tester supplier?
Compare the exact model and included kit, GST invoice, warranty, return terms, delivery commitment, technical support, and product documentation. Ask for the supplier’s business and tax details before placing a B2B order.
